Synchron USB Charger Samsung BP90A IABP90A with LCD

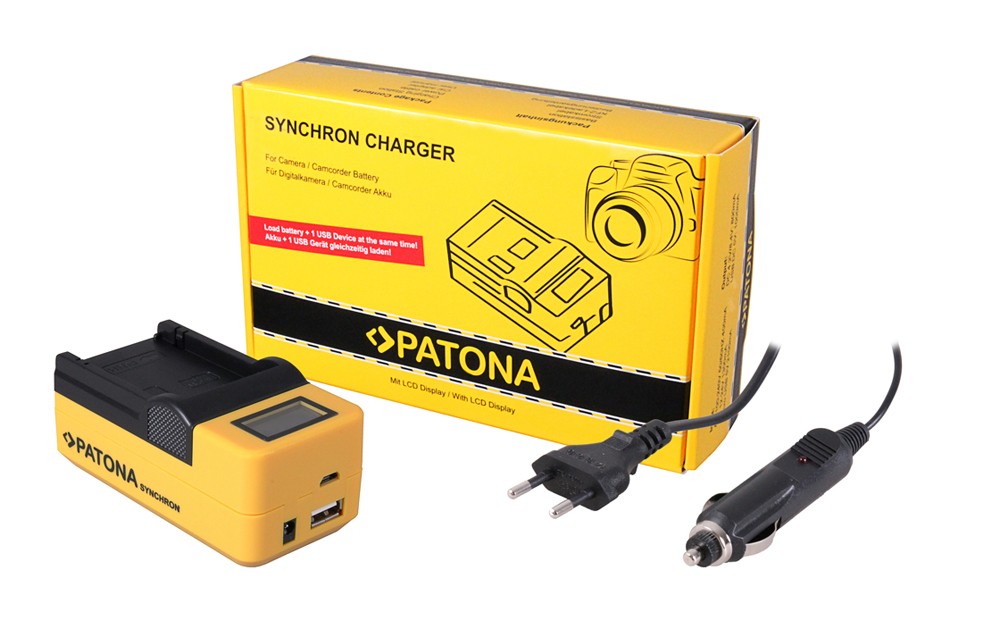

PATONA Synchron USB Charger f. Samsung BP90A IABP90A with LCD

The exclusive PATONA Synchron USB Charger f. Samsung BP90A IABP90A is capable to charge a battery and another device over the USB-Output at the same time.
The LCD Display shows the current charge level of the battery. It doesn’t matter if it is connected to a power source or not.
It is possible to use a 100-240V wall socket, 12-24V Car charger or 5V Micro-USB to power the device.
The build in Microchip protects the battery from damage due to overheating and overload.

Compatible to following batteries:
Samsung BP90A, IABP90A, IA-BP90A

Compatible model number:
Samsung
HMX HMXE100P, HMX-E100P, HMXE10BP, HMX-E10BP, HMXE10WP, HMX-E10WP

Technical Data:
Input:
AC 100V-240V 50/60Hz400mA (max)
DC 12-24V 1300mA (min)
Micro USB 5V 1000mA

Output:
DC 4,2V / 8,4V 800mA
USB Output: DC 5V 1000mA

Attention: As a safety measure the USB-Output will automatically deactivated if Micro-USB is used as input to power the device.

Pictures are only for illustration purposes! Delivery may vary.
